Filtration system

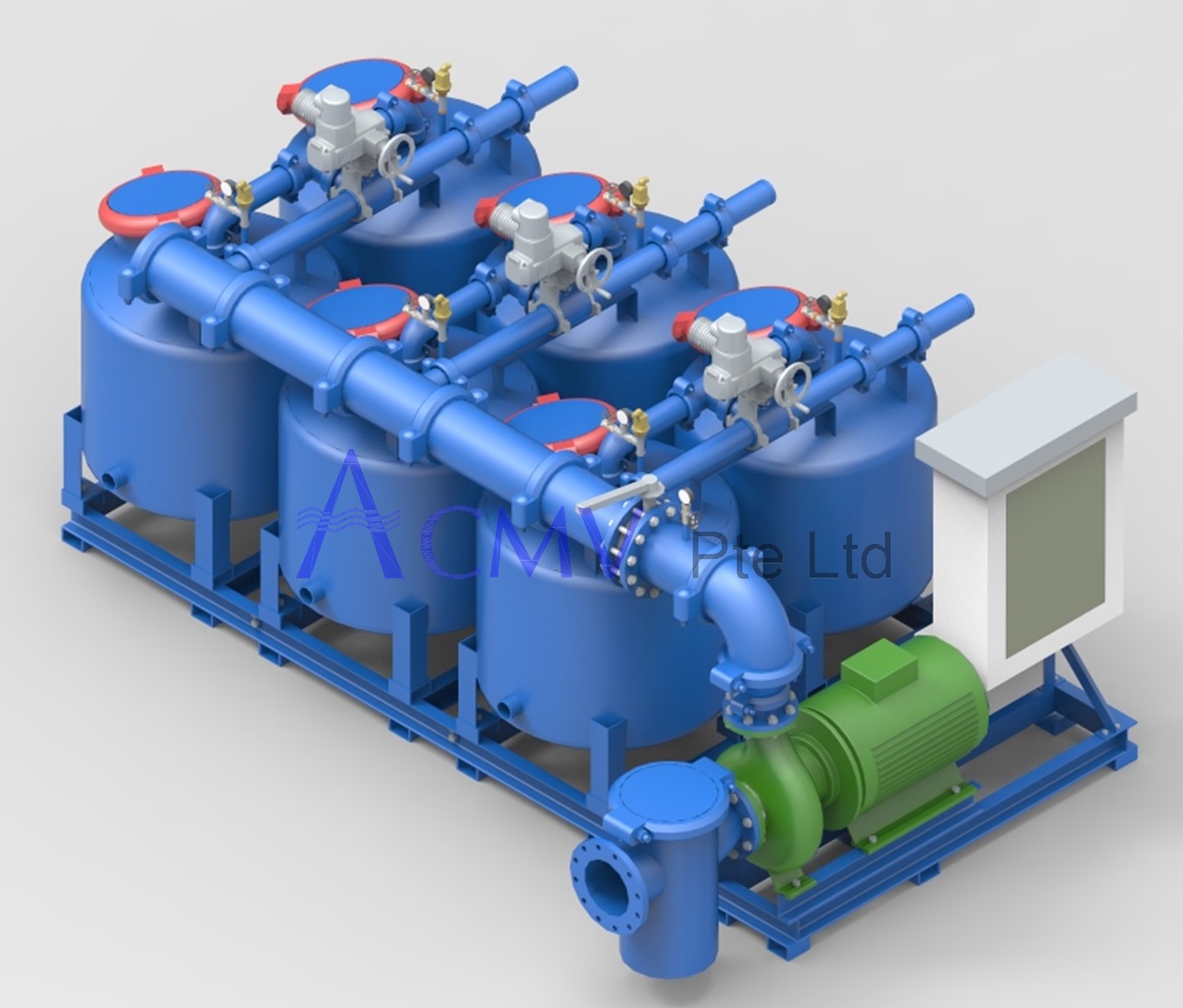

Sand Filtration System

Cooling towers get dirty too fast, and it is tedious to keep it clean all time. Sand Filtration System is an add-on equipment to maintain Cooling Tower water cleanliness all the time. It is necessary because dirty cooling tower water will affect the condenser circuit and even damage equipment along the circuit, thereby resulting in poor chiller efficiency.
Sand filtration system help to filter dust particles up to 10 microns. Filtration systems come with automatic backwash to rinse the sand and keep it clean every day, so the dirts filtered by the system will be washed away. These are standalone type which does not depend on the chiller circuits. These have its pipeline from cooling tower to the unit and back to the cooling tower.These are otherwise known as Side Stream Filtration System.

Features

Filtration Rating – Up to 10 microns
Operation Modes  – PLC, BMS, Manual
Power Supply – 400V 3P 50Hz
Filtering Capacity Range – 100 to 5000USGPM
Backwash Mode(Cleans itself automatically every day).

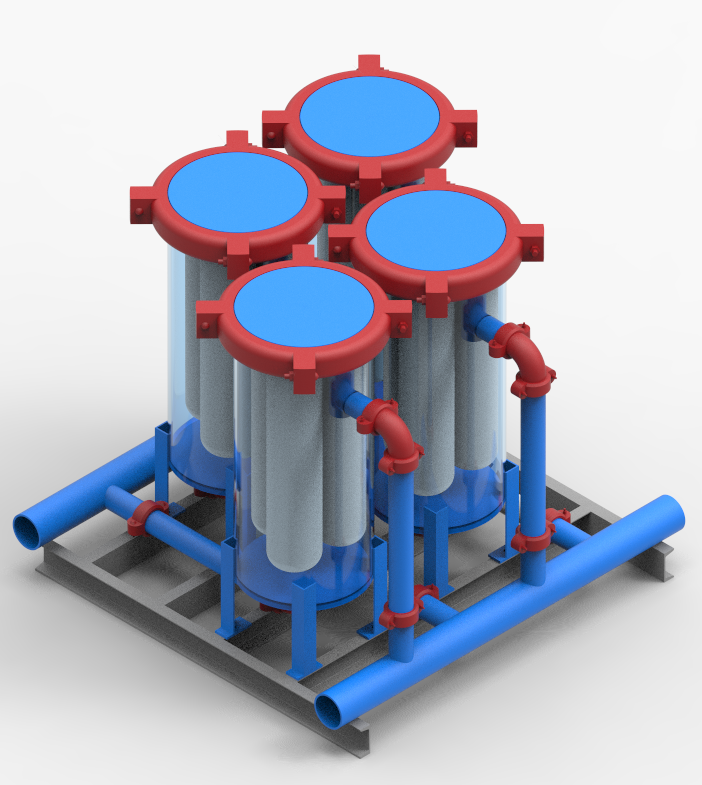

Inline-Bag-Filter & Cartridge Filter

A economical choice of Filtration System that can filter to sub-micron particles but requires manual removal of contaminants captured in the Bags and Cartridges.

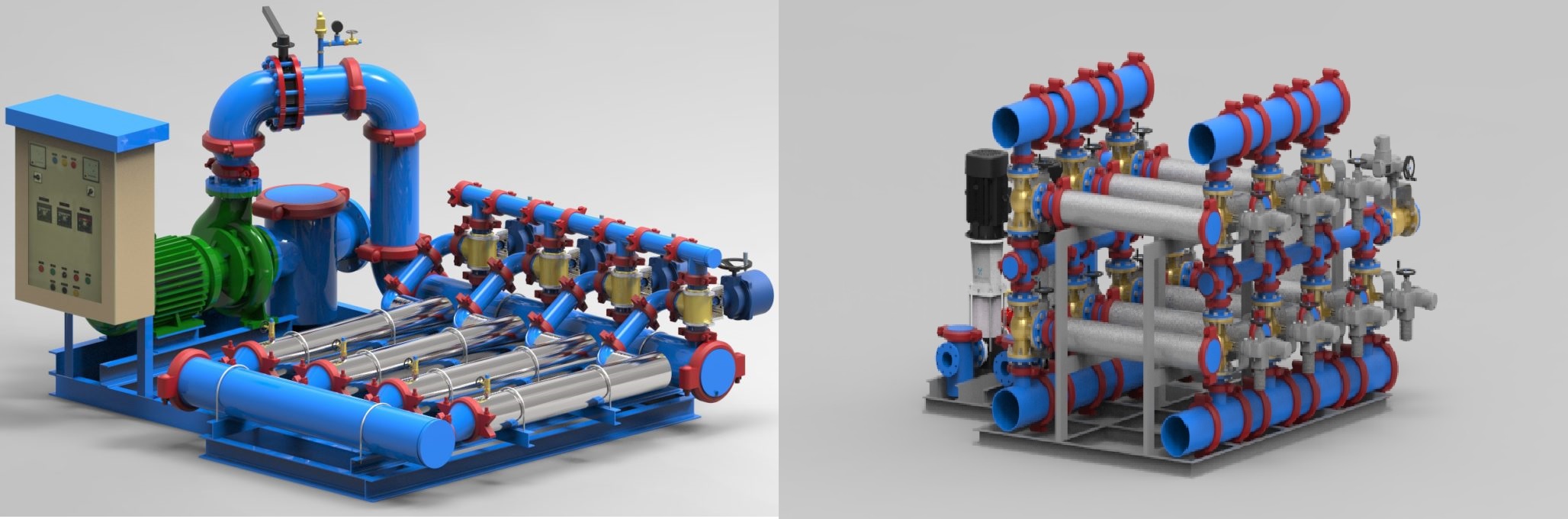

Wire-Wedge-filtration-system

It can go into automatic self cleaning backwash even as filtering is occurring at the same time. Typical particle filtering range is 5 to 100 microns. Wedge Wire Filtration Media is Made of Stainless Steel and can be an ideal application for food grade fluids. It is compact and module configuration allows for easy increment of capacity, ease of transport and installation.

Features

Filtration Rating – Up to 10 microns
Operation Modes  – PLC, BMS, Manual
Power Supply – 400V 3P 50Hz
Filtering Capacity Range – 250 to 3000USGPM
Backwash Mode(Cleans itself automatically every day).
